Filtermaster FM SPH Range Pool Pumps

Filtermaster FM series are available in 2 Models. Known for their strong build & reliable performance, they are designed and built for large pools.

Specifications:

  • Model: SPH100
  • kW: 0.75
  • HP: 1.0
  • Flow Rate: 360lpm
  • Pumping Height: 16m Head
  • Pool Size: 60,000 - 80,000 litres
  • Amps: 5
  • 50mm Fittings
  • 230v
  • dB Level - 65 (75/100) 67 (150/200)
  • Liquid operating range: 5 to 50 deg C

Features:

  • Self Priming up to 3.3m above water level
  • Non Corrosive- All parts are injection moulded
  • Stainless Steel Fastners
  • Mac Unions for Quick Release
  • Carbon and Neoprene Seals
  • IPX5 protection.
  • Insulation class F
  • Thermal overload protection
  • Rated for continuous use
  • Comes with large strainer basket and clear cover.
  • Motor Shaft protected by specially designed Noryl Impeller Shaft
  • Totally enclosed fan cooled motor

Applications:

  • Chlorinated pools
  • Salt water pools
  • Use with seawater


TWO YEAR WARRANTY

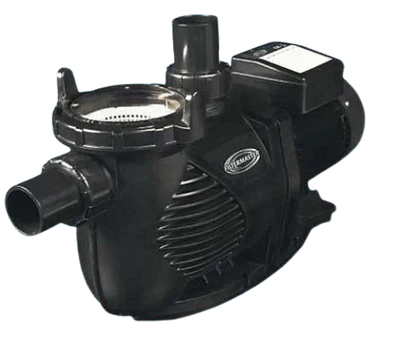

Black pump with visible brand logo on a white background

Filtermaster FM SPH Range Pool Pumps

Filtermaster FM series are available in 2 Models. Known for their strong build & reliable performance, they are designed and built for large pools.

Specifications:

  • Model: SPH100
  • kW: 0.75
  • HP: 1.0
  • Flow Rate: 360lpm
  • Pumping Height: 16m Head
  • Pool Size: 60,000 - 80,000 litres
  • Amps: 5
  • 50mm Fittings
  • 230v
  • dB Level - 65 (75/100) 67 (150/200)
  • Liquid operating range: 5 to 50 deg C

Features:

  • Self Priming up to 3.3m above water level
  • Non Corrosive- All parts are injection moulded
  • Stainless Steel Fastners
  • Mac Unions for Quick Release
  • Carbon and Neoprene Seals
  • IPX5 protection.
  • Insulation class F
  • Thermal overload protection
  • Rated for continuous use
  • Comes with large strainer basket and clear cover.
  • Motor Shaft protected by specially designed Noryl Impeller Shaft
  • Totally enclosed fan cooled motor

Applications:

  • Chlorinated pools
  • Salt water pools
  • Use with seawater


TWO YEAR WARRANTY

Filtermaster

Filtermaster FM SPH100 1 hp Pump

$1,042.00
Sale price: $1,042.00 Regular price:
Shipping calculated at checkout.

Quantity

Onsite Testing

Price: $36-$41 (plus any additional chemicals) for the Tauranga area. An additional mileage charge may apply for locations outside Tauranga.

Shop Water Testing (Free of Charge) You can also bring a water sample to our shop for testing free of charge providing you are getting your chemicals from us.

Our onsite testing service includes:

  • Testing and balancing your pool water.
  • Clearing skimmer and pump baskets.
  • Backwashing the filter.
  • Checking over the entire pool system.

We’ll leave a detailed pool service report on-site, showing the water test results and any recommendations we have for keeping your pool in top condition. You can choose to use your own chemicals, or we can provide high-quality products to get the job done.

Shop Water Testing Guidelines

If you prefer to bring a water sample to our shop for testing, please make sure to:

  • Use a clean container (not metal) to collect the sample.
  • Take the sample from at least 400mm below the water surface to ensure an accurate representation of your pool's water quality.
